HUNTLEY
1/4

HUNTLEY

Entertaining becomes a breeze in this home design

Are you aspiring to be a gourmet chef, love to entertain or catering to a crowd everyday? Finally a design created to tick all the boxes for a family's everyday with needs and wants. Its true, big space does equal bliss for all.

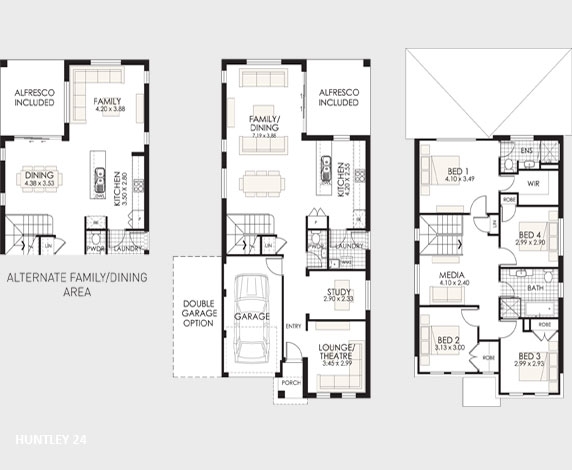

HUNTLEY 24

24.5
4
2.5
1
Ground Floor Living
90.09m²
First Floor Living
91.36m²
Single Garage
18.15m²
Double Garage Option
14.55m²
Porch
2.02m²
Alfresco
12.08m²
Total
228.25m²
Overall Width Single Garage
7.680m
Overall Width Double Garage
10.180m
Overall Length
16.310m
FITS 9.60M WIDE STANDARD LOT
SINGLE GARAGE FITS M WIDE LOT
DOUBLE GARAGE FITS 12.10M WIDE LOT
SINGLE GARAGE FITS M WIDE ZERO LOT
SINGLE GARAGE FITS 9.60M WIDE STANDARD LOT
DOUBLE GARAGE FITS 11.25M WIDE ZERO LOT
DOUBLE GARAGE FITS 12.10M WIDE STANDARD LOT

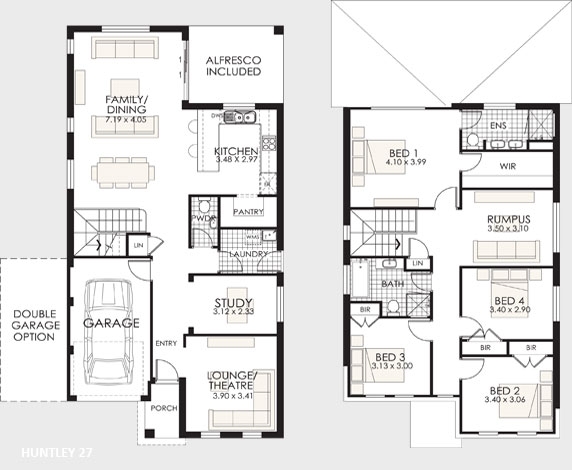

HUNTLEY 27

26.7
4
2.5
1
Ground Floor Living
99.76m²
First Floor Living
102.67m²
Single Garage
18.14m²
Double Garage Option
14.55m²
Porch
2.67m²
Alfresco
11.22m²
Total
249.01m²
Overall Width Single Garage
8.100m
Overall Width Double Garage
10.600m
Overall Length
16.810m
SINGLE GARAGE FITS 10.00M WIDE LOT
DOUBLE GARAGE FITS 12.50M WIDE LOT
SINGLE GARAGE FITS M WIDE ZERO LOT
SINGLE GARAGE FITS 10.00M WIDE STANDARD LOT
DOUBLE GARAGE FITS 11.73M WIDE ZERO LOT
DOUBLE GARAGE FITS 12.50M WIDE STANDARD LOT

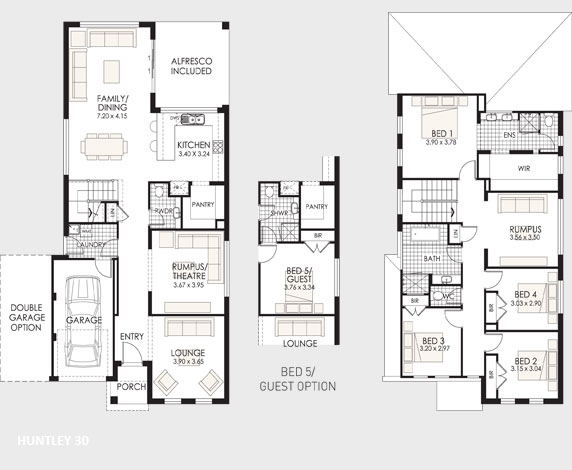

HUNTLEY 30

30.45
4
2.5
1
Ground Floor Living
116.19m²
First Floor Living
114.32m²
Single Garage
18.12m²
Double Garage Option
15.49m²
Porch
3.25m²
Alfresco
15.14m²
Total
282.51m²
Overall Width Single Garage
9.000m
Overall Width Double Garage
11.600m
Overall Length
18.050m
FITS 10.90M WIDE STANDARD LOT
SINGLE GARAGE FITS 10.90M WIDE LOT
DOUBLE GARAGE FITS 13.50M WIDE LOT
SINGLE GARAGE FITS M WIDE ZERO LOT
SINGLE GARAGE FITS 10.90M WIDE STANDARD LOT
DOUBLE GARAGE FITS 12.73M WIDE ZERO LOT
DOUBLE GARAGE FITS 13.50M WIDE STANDARD LOT

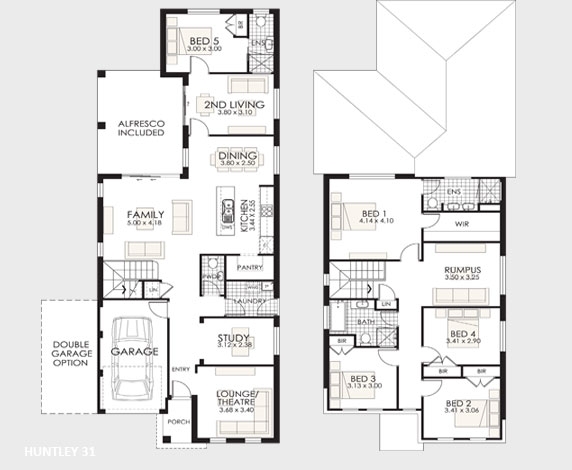

HUNTLEY 31

30.6
5
3.5
1
Ground Floor Living
126.47m²
First Floor Living
103.89m²
Single Garage
18.14m²
Double Garage Option
14.55m²
Porch
2.67m²
Alfresco
18.84m²
Total
284.56m²
Overall Width Single Garage
8.100m
Overall Width Double Garage
10.600m
Overall Length
22.260m
SINGLE GARAGE FITS 10.00M WIDE LOT
DOUBLE GARAGE FITS 12.50M WIDE LOT
SINGLE GARAGE FITS M WIDE ZERO LOT
SINGLE GARAGE FITS 10.00M WIDE STANDARD LOT
DOUBLE GARAGE FITS 11.73M WIDE ZERO LOT
DOUBLE GARAGE FITS 12.50M WIDE STANDARD LOT
